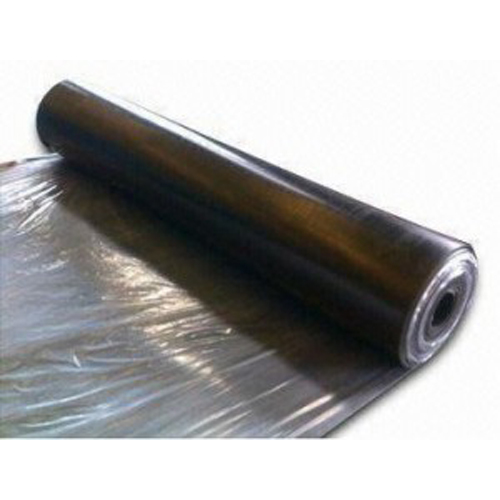

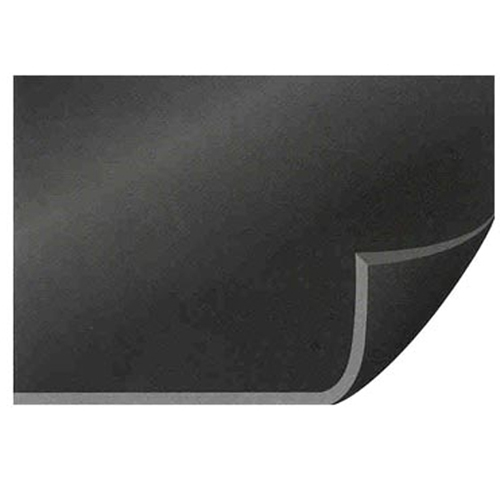

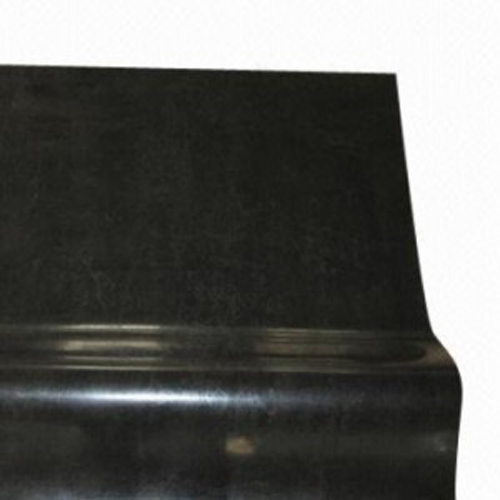

Nitrile Rubber Sheet
Nitrile Rubber Sheets(abbr. NBR, B200000 Rubber) is a copolymer of butadiene and acrylonitrile. It has moderate aging properties and good adhesion to metal. Nitrile Rubber displays good general resistance to oil together with good mechanical properties especially tensile strength, compression set, f......Send Inquiry
Product Description
Nitrile Rubber Sheets(abbr. NBR, B200000 Rubber) is a copolymer of butadiene and acrylonitrile. It has moderate aging properties and good adhesion to metal. Nitrile Rubber displays good general resistance to oil together with good mechanical properties especially tensile strength, compression set, flexing and impermeability to gases.
Application:
Nitrile rubber has a good resistance to inorganic chemical products. It gives satisfactory resistance to general hydrocarbons. Some of the grades are also recommended for good grade application. Due to its polar nature, nitrile rubber is not recommended in the use with polar liquids like ketones.
Specification:
|
NITRILE RUBBER SHEET: BLACK (100% NITRILE) |
|||||||
|
Model |
Specific Gravity |
Hardness (±5) |
Tensile Strength |
Elongation at break |
Tear Strength |
Compression Set at 70°C for 22 hrs |
Working Temp. |
|
g / cm3 |
Shore A |
(min) kg / cm2 |
(min) % |
kg / cm |
% |
°C Range |
|
|
NBR1121 |
1.12 |
40 |
70 |
500 |
30 |
35 |
-35+100 |
|
NBR1351 |
1.35 |
65 |
100 |
350 |
25 |
30 |
-30+110 |
|
SPECIAL NITRILE RUBBER SHEET: BLACK (100% NBR) |
||||||
|
Model |
Specific Gravity |
Hardness (±5) |
Tensile Strength |
Elongation at break |
Compression Set at 70°C for 22 hrs |
Working Temp. |
|
g / cm3 |
Shore A |
(min) kg / cm2 |
(min) % |
% |
°C Range |
|
|
SNBR1201 |
1.20 |
40(+5-4) |
70 |
600 |
40 |
-30+100 |
|
SNBR1202 |
1.20 |
50(+5-4) |
77 |
450 |
40 |
-30+100 |
|
SNBR1203 |
1.20 |
60(-5-4) |
84 |
400 |
40 |
-30+100 |
|
SNBR1251 |
1.25 |
70(+5-4) |
126 |
250 |
35 |
-30+100 |
|
SNBR1301 |
1.30 |
80(+5-4) |
126 |
250 |
35 |
-30+100 |
|
COMMERCIAL NITRILE RUBBER SHEET: BLACK |
|||||||
|
Model |
Specific Gravity |
Hardness (±5) |
Tensile Strength |
Elongation at break |
Tear Strength |
Compression Set at 70°C for 22 hrs |
Working Temp. |
|
g / cm3 |
Shore A |
(min) kg / cm2 |
(min) % |
kg / cm |
% |
°C Range |
|
|
NBR1501 |
1.50 |
50 |
70 |
300 |
18 |
30 |
-30/100 |
|
NBR1451 |
1.45 |
70 |
50 |
300 |
18 |
40 |
-30/90 |
|

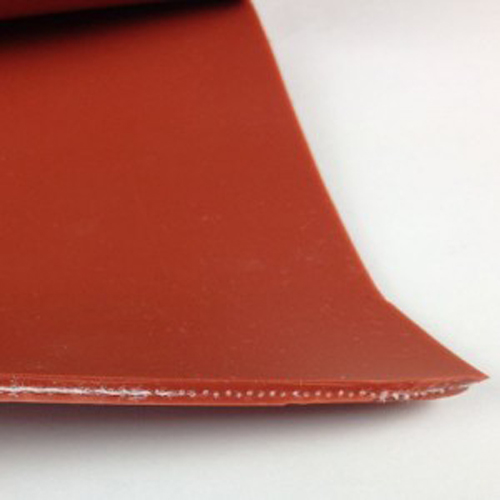

NITRILE RUBBER SHEET: DIFFERENT COLORS |
|||||||
|
Model |
Specific Gravity |
Hardness (±5) |
Tensile Strength |
Elongation at break |
Tear Strength |
Compression Set at 70°C for 22 hrs |
Working Temp. |
|
g / cm3 |
Shore A |
(min) kg / cm2 |
(min) % |
kg / cm |
% |
°C Range |
|
|
NBR1251 |
1.25 |
45 |
50 |
500 |
15 |
40 |
30/110 |
|
NBR1401 |
1.40 |
60 |
60 |
350 |
18 |
40 |
-35/110 |
|
NBR1402 |
1.40 |
65 |
80 |
400 |
20 |
40 |
-35/110 |
|
Standard Length |
10 Mtr |
10,000mm |
33ft |
11 yard |
|
Standard Width |
1.2 / 1.4 / 1.5 mtr |
1200 / 1400 / 1500mm |
4 / 4.6 / 4.92ft |
1.33 / 1.53 / 1.64 yard |
|
Standard Thickness |
1 – 50 mm |
1/32″ – 2″ |
||
|
Colors |
red/ grey/ blue/ green |
|||
